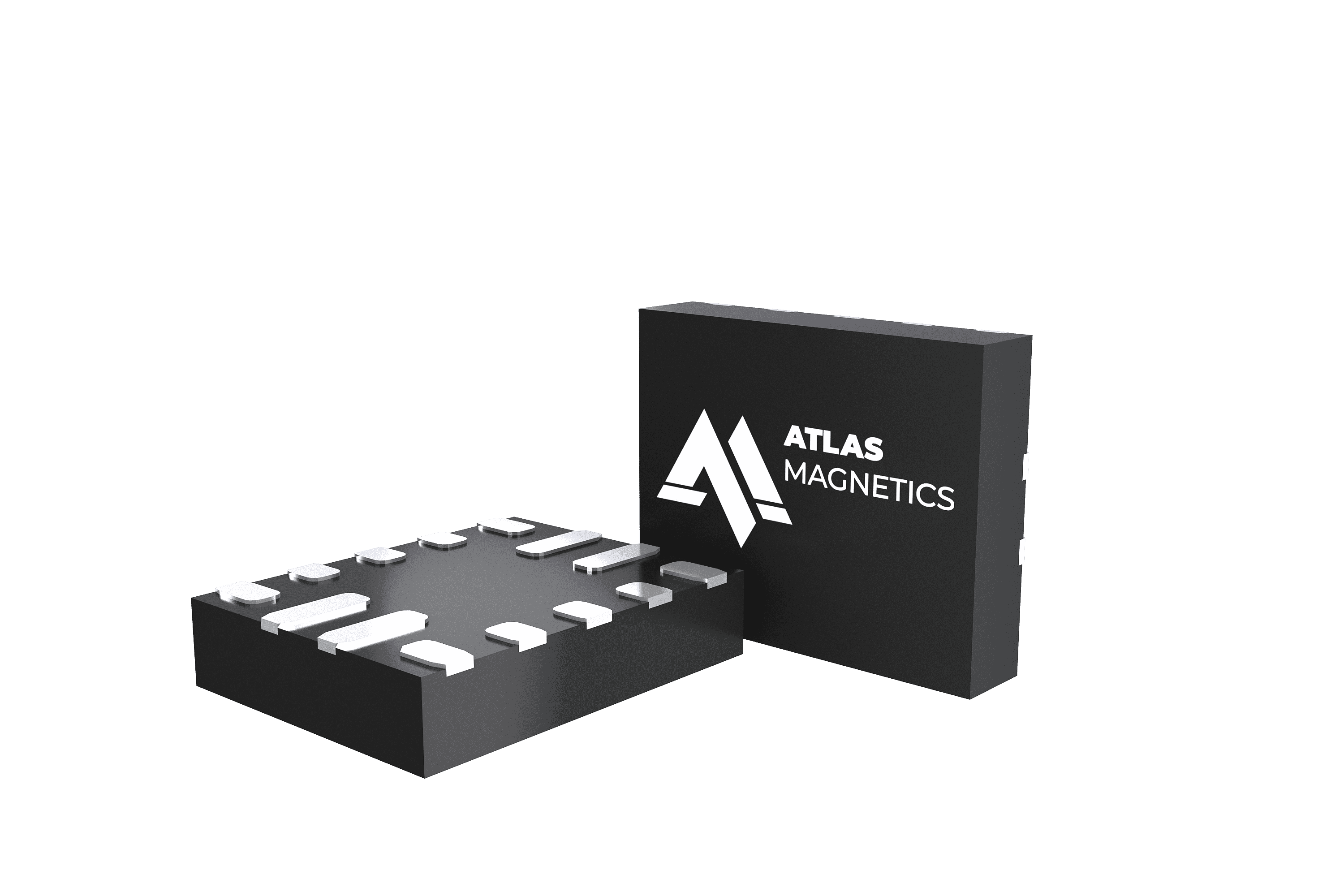

The AM1U1114is an ultra-small programmable μASIC featuring Logic Macrocells, Timers, I2C interface,
Oscillators, ACMPs, Temperature Sensor, VREF. Each Macrocell within the AM1U1114 contains multiple, configurable settings and initial states for maximum flexibility.

µASICs introduction

AM1U1114 Datasheet






large_AM1U1114, AM1U1714.png

medium_AM1U1114, AM1U1714.png

small_AM1U1114, AM1U1714.png

thumbnail_AM1U1114, AM1U1714.png

AM1U1114, AM1U1714.png

- 1.71 V to 5.50 V Supply (VDD)
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant/Halogen-Free/Pb-Free
-Four Analog Comparators (ACMP)
-Voltage Reference (VREF)
-Temperature Sensor (TS)
-100uA Current Source
- I2C Protocol compliant
- Twenty-Seven Multifunctional Macrocells
- One Programmable Delay or Edge Detector
- Two Oscillators (OSC)
- Power On Reset (POR)
- Data Protection Feature
- CRC-8, CRV
-Continuous Registers Verification (CRV)

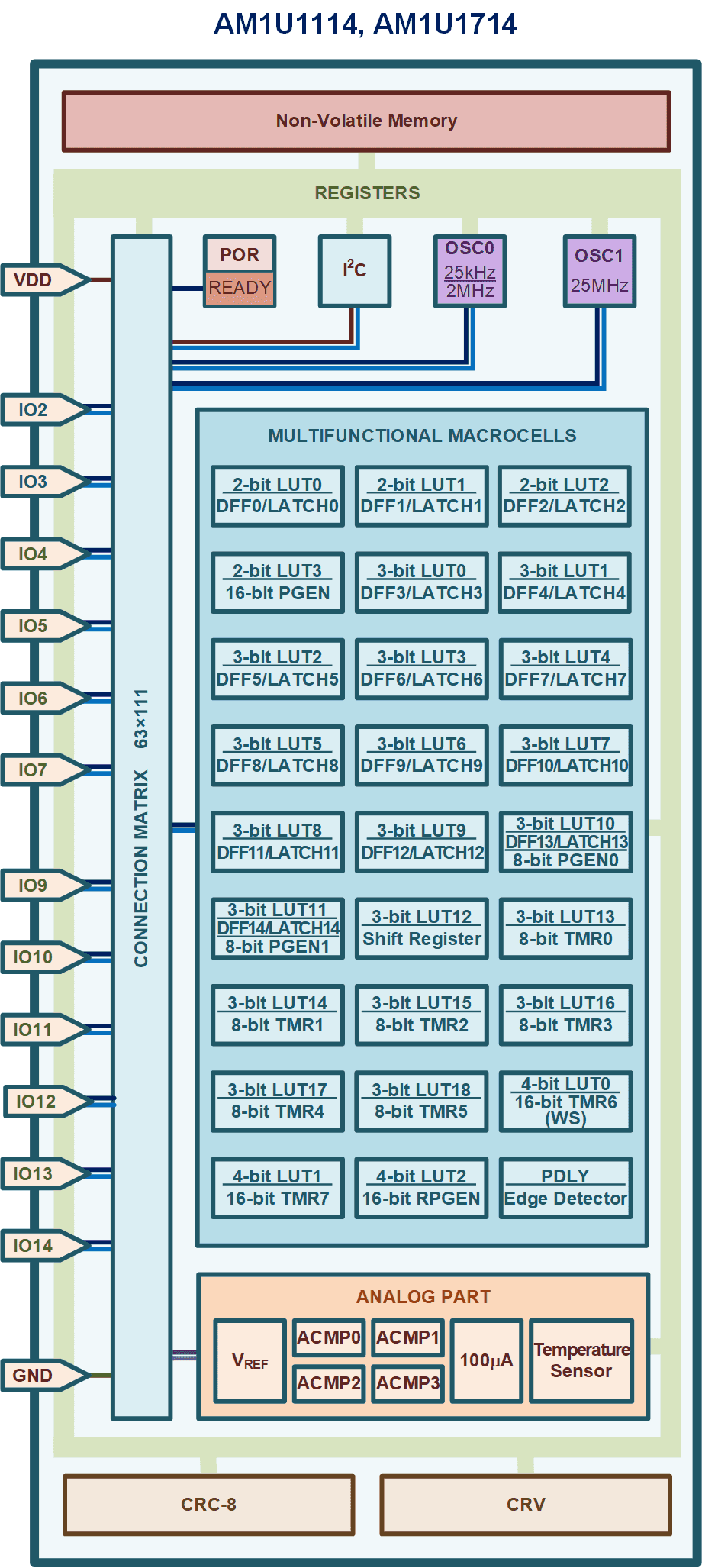

The 14-pin AM1U1114 is a programmable µASIC products featuring LUTs, Logic Macrocells, Timers, Oscillators, ACMPs, Temperature Sensor, VREF. Each Macrocell within the AM1U1114 boasts multiple configurable settings and initial states, ensuring maximum flexibility. Moreover, the inclusion of the I2C feature, combined with other capabilities, elevates this component to a super universal level, catering to diverse application needs.

Configurable µASIC

AM1U1114

Product Overview & Demonstration

Check out the application examples in Atlas EDA
