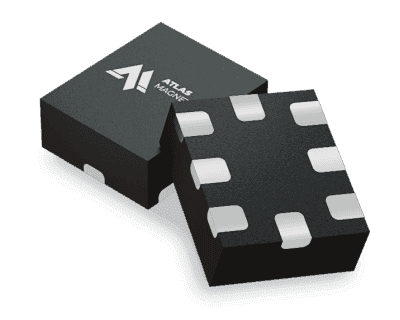

The world's smallest mixed-signal IC, the 8-pin AM1U1408, is a programmable µASIC that combines analog blocks like an Analog Comparator, Current Source (100µA), and Vref with digital macrocells such as LUTs, Logic Macrocells, Timers, and Oscillators.

µASICs introduction

AM1U1408 Datasheet








- 1.71 V to 5.50 V Supply (VDD)
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant/Halogen-Free/Pb-Free
- One Analog Comparator (ACMP)
- Voltage Reference (VREF)
- 100uA Current Source
- Seven Multifunctional Macrocells
- One 16-bit Timer
- One Oscillator (OSC)
- Power On Reset (POR)
- Data Protection Feature (CRC, CRV)

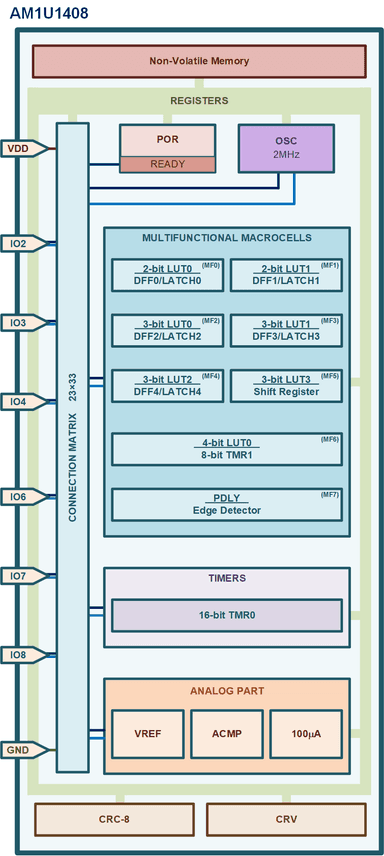

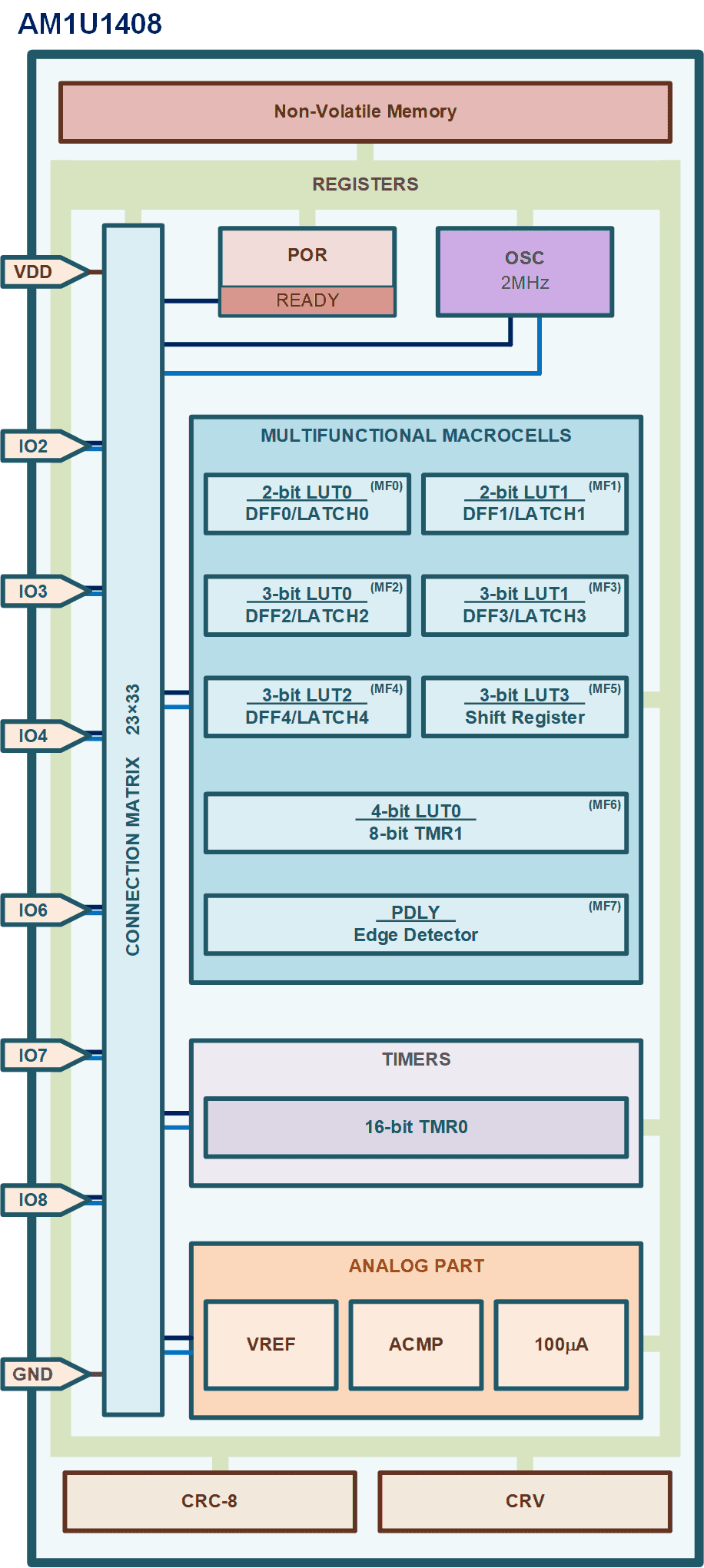

The 8-pin AM1U1408 is a programmable µASIC product that integrates analog blocks including an Analog Comparator, Current Source (100µA), and Vref. It also features digital macrocells such as LUTs, Logic Macrocells, Timers, and Oscillators. With its ultra-compact size and minimal power consumption (0.6µA), it delivers savings in both space and power.

Configurable µASIC

AM1U1408

Product Overview & Demonstration
