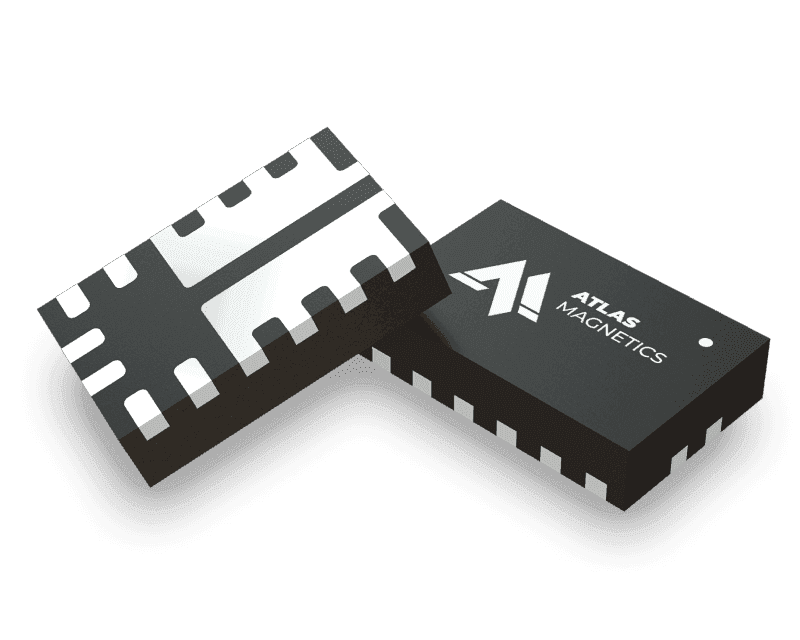

The AM6U1104 is a 4mΩ, 4A single-channel load switch that
switches 0.9V to 5.5V power rails. It contains two overcurrent
protection modes, configurable slew rate control and output
discharge features.
The product is packaged in small 1.6x2.5mm package.

AM6U1104 Datasheet





AM_6_U1104_Functional_Block_Diagram_AM_3c185d41f6.svg

- 1.6x2.5x0.55mm QFN1625-16 package
- 4mΩ RDSON
- Discharges load when off
- Two Over Current Protection Modes
  - Short Circuit Current Limit
  - Active Current Limit
- Over Temperature Protection
- RoHS Compliant / Halogen-Free / Pb-Free
- Operating Temperature: -40°C to 85°C
- Operating Voltage: 2.5V to 5.5V

Load Switches

AM6U1104
