The AM6U1125 is a 17mΩ, 2.5A single-channel load switch that
switches 1.0V to 5.5V power rails. It contains two overcurrent
protection modes and configurable slew rate control.

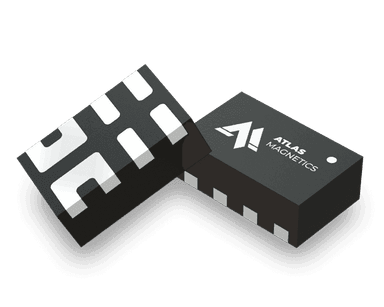

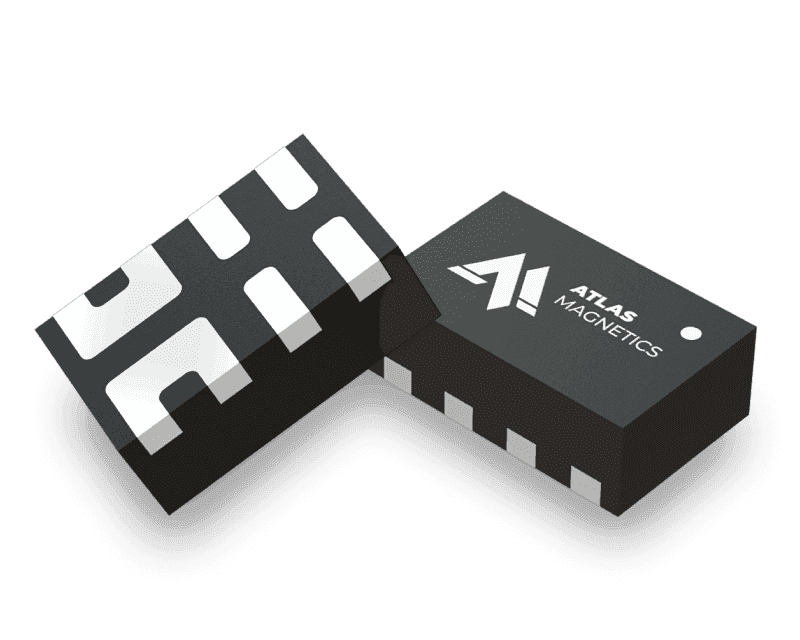

The product is packaged in an ultra-small 1.0x1.6mm package.


AM6U1125 Datasheet





AM_6_U1125_Functional_Block_Diagram_AM_e363eb768b.svg

- 1.0x1.6x0.55mm U-DFN1610-8 package
- 17mΩ RDSON while supporting 2.5A
- Discharges load when off
- Two Over Current Protection Modes
  - Short Circuit Current Limit
  - Active Current Limit
- Over Temperature Protection
- RoHS Compliant / Halogen-Free / Pb-Free
- Operating Temperature: -40°C to 85°C
- Operating Voltage: 2.5V to 5.5V

The AM6U1125 is a 17mΩ, 2.5A single-channel load switch that
switches 1.0V to 5.5V power rails. It contains two overcurrent
protection modes and configurable slew rate control.
The product is packaged in an ultra-small 1.0x1.6mm package
