AM61325

AM6U1325_DS_r002_06112025.pdf

The AM6U1325 is a 17mΩ, 2.5A single-channel load switch
that is able to switch a power rail ranging from 1.0 V to 5.5 V.
It contains reverse current protection and Power Good [PG]
signaling pin.

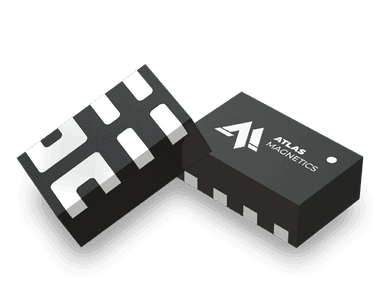

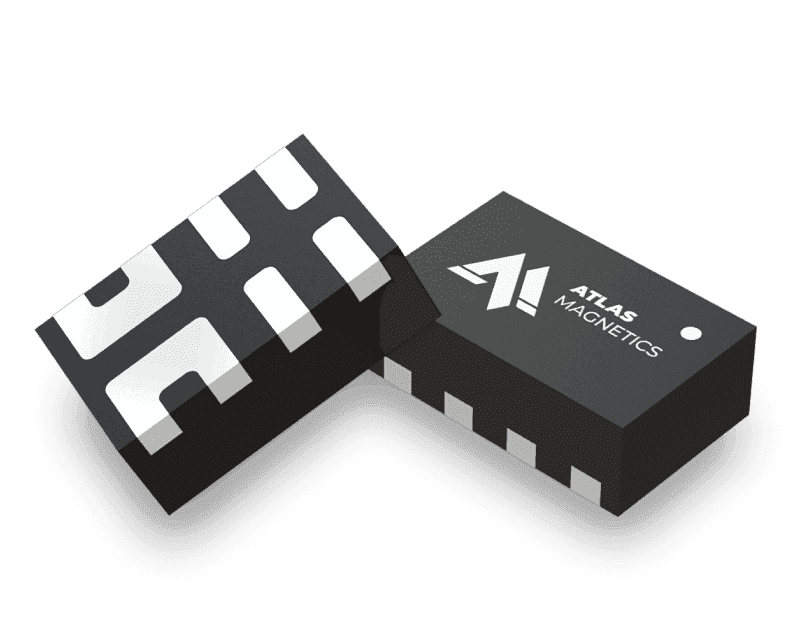

The product is packaged in an ultra-small 1.0x1.6mm
package.


AM6U1325 Datasheet





AM_6_U1325_Functional_Block_Diagram_AM_77ae53a9a3.svg

- 1.0x1.6x0.55mm U-DFN1610-8 package
- 17mΩ RDSON
- Over Temperature Protection
- RoHS Compliant / Halogen-Free / Pb-Free
- Operating Temperature: -40 °C to 85 °C
- Operating Voltage: 1.5 V to 5.5 V

Load Switches

AM6U1325
