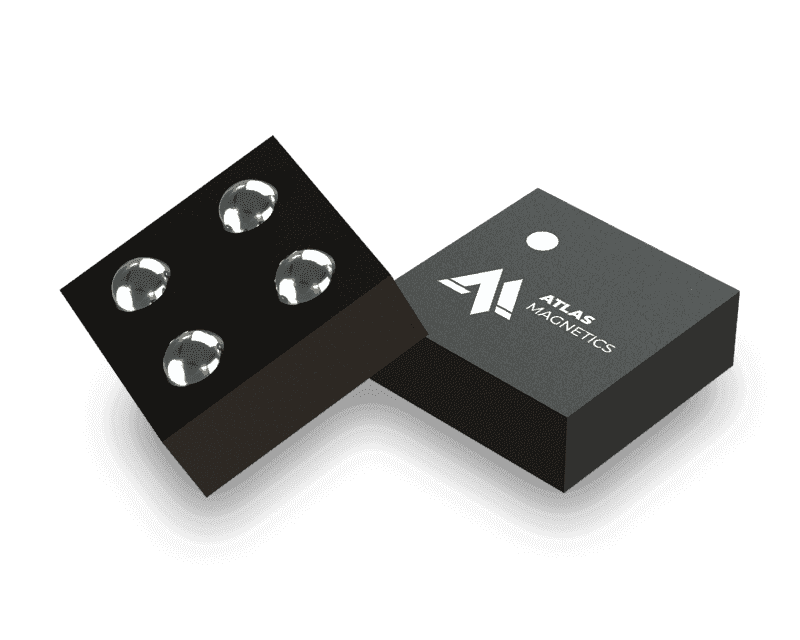

The AM6U1701 is a 38mΩ, 1.0A, load switch that switches a
power rail ranging from 2.5V to 5.5V. During the power up,
internal controlled inrush current profile limits the current
through the pFET to the internally fixed value.
The product is packaged in a small 0.85 x 0.85 mm package.

AM6U1701 Datasheet





AM_6_U1701_Functional_Block_Diagram_1a4ef1a717.svg

- Operating Voltage: 2.5V to 5.5V
- Operating Temperature: -40°C to 85°C
- 0.85 x 0.85, 0.4mm pitch WLCSP package
- 38.3mΩ RDSON at VIN = 5.5V
- Discharges load when off
- RoHS Compliant / Halogen-Free / Pb-Free

Load Switches

AM6U1701
